Measuring guide
How to Take Accurate Measurements for Your Fence Project
Before ordering your fence, it’s essential to measure your site carefully. The measuring process is the same whether you’re installing posts with base plates or setting them directly into the ground.
Don’t worry if you’re new to this—just follow these straightforward steps.
1. Determine the Total Length
Example perimeter measurement: 20+10+20+10 = 60 m
Example for an L-shaped lot: add up the length of each side
2. Choose the Height
H: Measure the height of your fence, considering the portion above ground.
1
Your needs:
24"–48": suitable for marking property lines
60"–72": a good balance for home security and privacy
80" and above: ideal for maximum privacy.
+8–12" for posts set on a wall
+12–20" for posts set directly in the ground
(depends on soil type)
Check your local codes for maximum fence height before making a decision.
2
Local regulations:
Each city or county may have its own zoning rules that set a maximum fence height. In some areas, you may be limited to 72" or required to follow specific design guidelines (such as in subdivisions or historic districts). Always check with your local building department before ordering to avoid issues.
3. Decide if You Need a Base or Curb
A base (concrete curb or slab) can help:
- • Prevent grass from growing under the fence
- • Retain soil if your yard isn’t level (up to 30% of the base height)
- • Add strength and stability
- • Deter animals from entering your yard
- • Enhance the overall appearance
If your ground is flat and even, a base is optional.
There are two main types of bases: concrete or powder-coated steel.
4. Decide if You Need a Base Plate
A base plate allows you to anchor posts to a concrete surface. On a wall or slab, it secures both the post and the fence panel.
Note: If you plan to add privacy slats to a rigid fence, setting posts in concrete is recommended. Using base plates is not advised for privacy panels, as the added weight and wind load can damage the fence.
5. Account for Sloped Ground
Stepped installation (terraced): Each section is installed level, but offset in height from the previous one.
To plan for this, measure the length of each level section (horizontal segment).
You can add a base to each step, either by burying it or cutting it to the right length.
Alternatively, cut your panels to size or use chain link mesh, which is easier to adapt.
If you’re unsure, contact our customer service at 0422531034.
6. Calculate the Number of Posts Needed
The number of posts depends on your total fence length and the type of fence. Each fence panel is installed between two posts.
Each panel is 8 ft 2 in long.
Example: For 82 ft of fencing with 8 ft 2 in panels: 82 ÷ 8.2 = 10 panels
You’ll need 11 posts (1 starter post + 1 post between each panel)
Our posts are designed for corners, so you don’t need extra posts for angles! If you’re adding a base, double the number of posts required.
Each rigid mesh panel measures 8 ft 2 in long.
For certain layouts or custom lengths—such as 20 ft or along a curve—you can trim a panel to fit. Rigid mesh panels can be cut easily with the right tool (angle grinder or bolt cutters) for a perfect fit.
In Summary:
Measure your total perimeter.
Choose your fence height (based on your needs and local codes).
Decide if you need a base or base plate.
Check if your ground is level or sloped.
Count your corners to determine the right number of posts.
With these details, you’ll be ready to select the best fence for your property.
A question about this product?

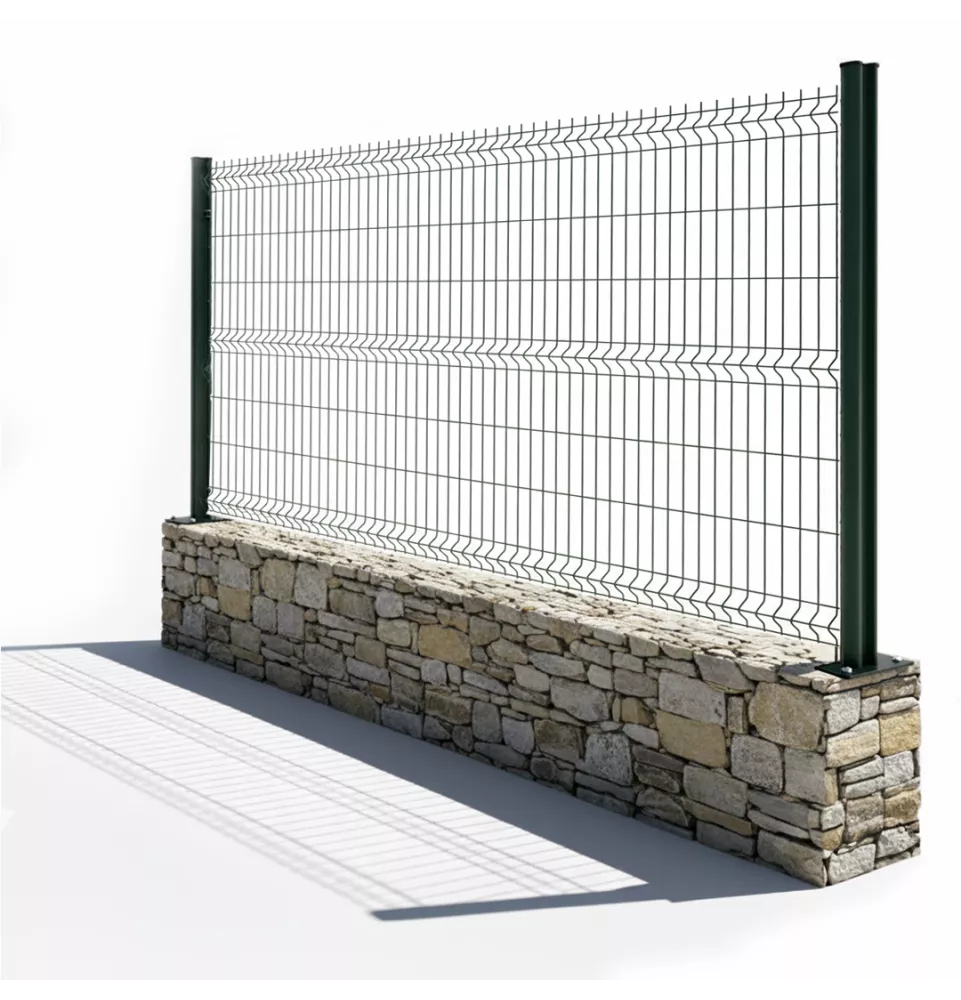

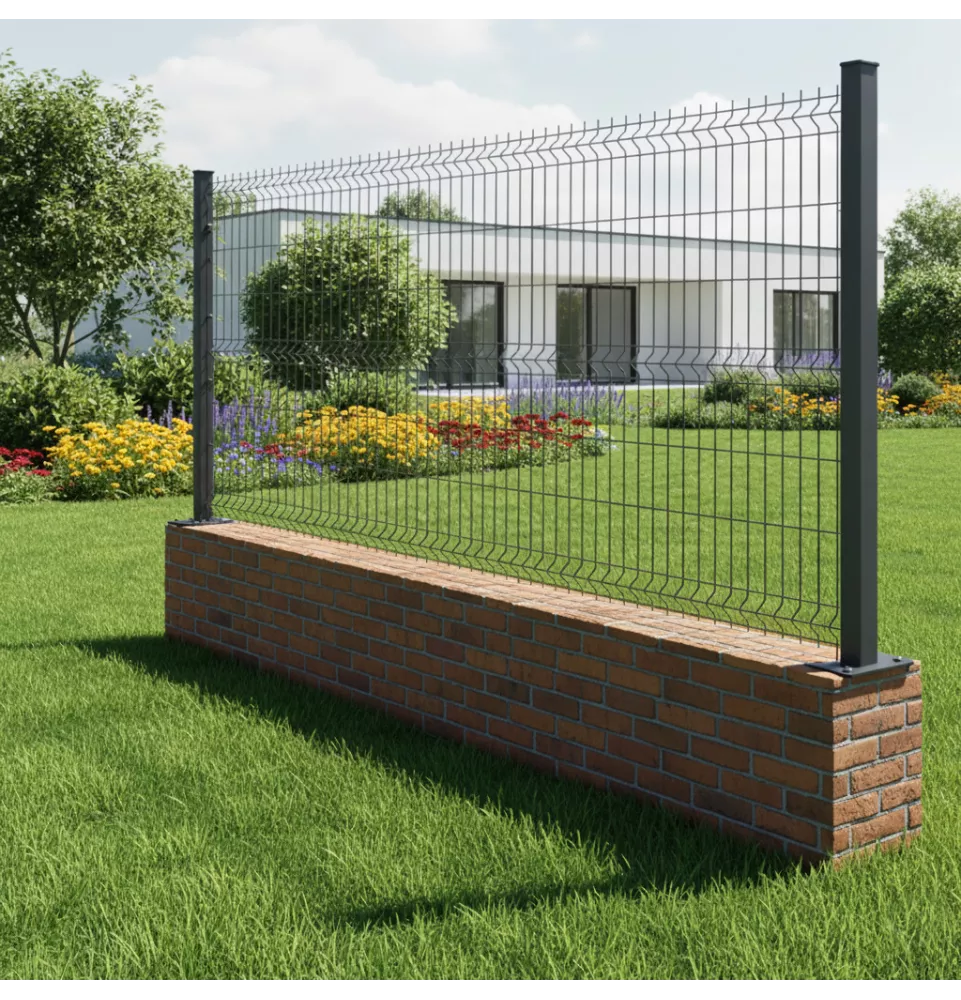

Brico+ Rigid Mesh Fence Kit with Base Plates (4/4mm)
This complete rigid mesh fence kit includes everything you need to install your own fence. You'll receive all the materials required to easily set up a modern, attractive wire mesh fence at home.
Read more
Volumediscounts!
| Number of lm | +40 lm |
|---|---|
| % discount | 5% |
BRICO+ Rigid Wire Mesh Fence Panel Districlos
Tempo Welded Base Plate Post
Cap for Tempo Rigid Fence Post
Cheville 12/100
Range
Color
Height
Color
Height
Color
Color
Size
Lowest price on the web guaranteed
Found it cheaper elsewhere? We refund you the difference.
Made in
France & Europe
Flexible Payment Options
10-Year
Anti-Corrosion Warranty
Home delivery
or in-store pickup
x1

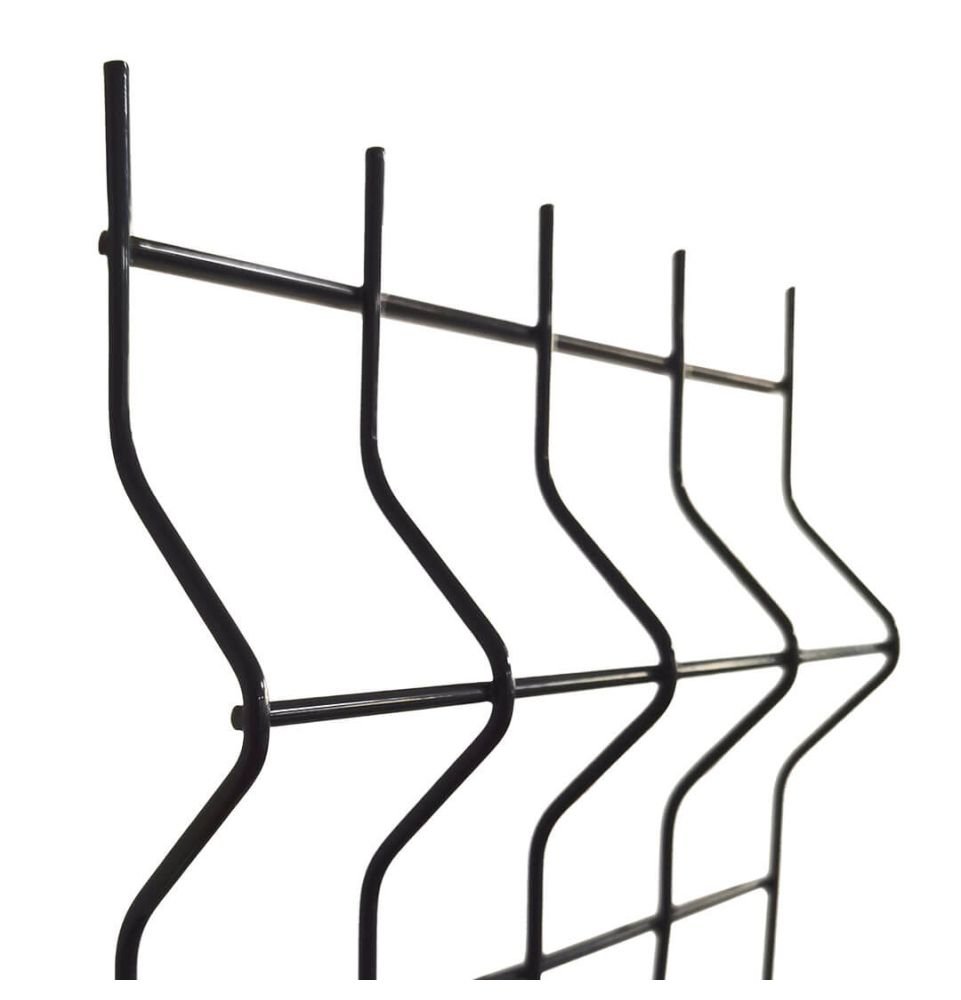

BRICO+ Rigid Wire Mesh Fence Panel Districlos
Brico+ (4/4 mm wire), Gray 7016, 3 ft 5 in
Our rigid mesh fence panels feature a support-free fastening system for quick and easy installation. The anti-corrosion coating ensures long-lasting durability, making these panels suitable for any outdoor setting.
Select your preferred color, panel height, and mesh type to fit your project.
x2
Tempo Welded Base Plate Post
Gray 7016, 3.5 ft
The rigid mesh fence post is essential for keeping your rigid panel fence stable and secure. Made in France and backed by a 10-year warranty, this post is built from durable materials for long-lasting performance.
End caps are sold separately.
Anchors are not included.
x2
Cap for Tempo Rigid Fence Post
Black RAL 9005
Black PVC cap designed for the Tempo post used with rigid mesh fencing. This cap seals the top of the post and provides a clean, finished look.
x4
Panel and Post Height Guide
| Panel Height | Post Height |
Finished Height |
||
| Surface Mount | Set in Concrete | With Base Panel | ||
| 0m63 | 0m67 | 0m87 | NC | NC |
| 0m83 | 0m87 | 1m07 | NC | NC |
| 1m03 | 1m07 | 1m27 | 1m77 | 1m28 |
| 1m23 | 1m27 | 1m57 | 1m97 | 1m48 |
| 1m53 | 1m57 | 1m97 | 2m17 | 1m78 |
| 1m73 | 1m77 | 2m17 | 2m47 | 1m98 |
| 1m93 | 1m97 | 2m47 | 2m87 | 2m18 |
Note: The posts included in our kits are designed for standard installation on level ground. If your site has a slope, you may need longer posts.
kit-grillage-rigide-platines-brico-plus
0
Items
Data sheet
- Application
- Residential & Commercial
- Installation type
- With base plates
- Origin
- Europe
- Warranty
- 10 years
