Measuring guide
How to Measure for Your Fence Project
Before ordering your fence, it’s important to take accurate measurements. The measuring process is the same whether you’re installing on a base plate or setting posts in the ground.
Don’t worry if you’re new to this—just follow these straightforward steps.
1. Determine the Total Length
Example perimeter measurement: 20+10+20+10 = 60 m
Example for an L-shaped yard: add up each side
2. Choose the Height
H: Calculate your fence height based on the above-ground portion.
1
Your needs:
0.6m to 1.2m: ideal for marking property lines
1.5m to 1.8m: a good balance for home security and privacy
2.0m and above: best if you want maximum privacy.
+20/30 cm for posts set on a low wall
+30/50 cm for posts set directly in the ground
(depends on soil type)
Check your local zoning rules for maximum fence height before choosing.
2
Local regulations:
Each city or town may have zoning rules (such as a local ordinance) that set a maximum fence height. In some areas, you may be limited to 1.8m or required to follow specific design guidelines (for example, in subdivisions or historic districts). Check with your local authorities before ordering to avoid issues.
3. Decide if You Need a Base (Sill)
A base (concrete curb or slab) helps to:
- • Prevent grass from growing under the fence
- • Hold back soil if your yard isn’t level (up to 30% of the base height)
- • Add stability
- • Deter animals from entering your yard
- • Enhance appearance
If your ground is flat and even, a base is optional.
There are two types of bases: concrete or powder-coated steel.
4. Decide if You Need a Base Plate
A base plate lets you anchor posts to a concrete surface. On a wall or concrete slab, it secures your post and fence panel.
Note: If you plan to add privacy screening to a rigid fence, setting posts in concrete is recommended. Using a base plate is not advised, as the extra weight and wind load can damage your fence.
5. Account for Sloped Ground
Stepped installation: Each section is installed level, but at a different height from the previous one.
To plan this, measure the length of each step (horizontal segment).
You can add a base for each step, either by burying it or cutting it to size.
Alternatively, you can cut panels to fit or use chain link mesh, which is more flexible for slopes.
If you’re unsure, contact our customer service at 0422531034.
6. Calculate How Many Posts You Need
The number of posts depends on your total length and fence type. Each fence panel is installed between two posts.
Each panel is 2.5m long.
Example: For 25m of fencing with 2.5m panels: 25 ÷ 2.5 = 10 panels
You’ll need 11 posts (1 start post + 1 between each panel)
Our posts are designed to handle corners, so you don’t need extra posts for angles! If you’re using a base, double the number of posts.
Each rigid mesh panel is 2.5 meters long.
For certain layouts or specific lengths—such as 6 meters or along a curve—you can cut a panel to size. Rigid mesh panels can be trimmed easily with the right tool (angle grinder or bolt cutters) for a custom fit.
Summary:
Measure the total perimeter.
Choose your height (based on your needs and local rules).
Check if you need a base or a base plate.
See if your ground is sloped or flat.
Count your corners to determine the right number of specific posts.
With these details, you’ll have everything you need to select the fence that fits your property best.
A question about this product?

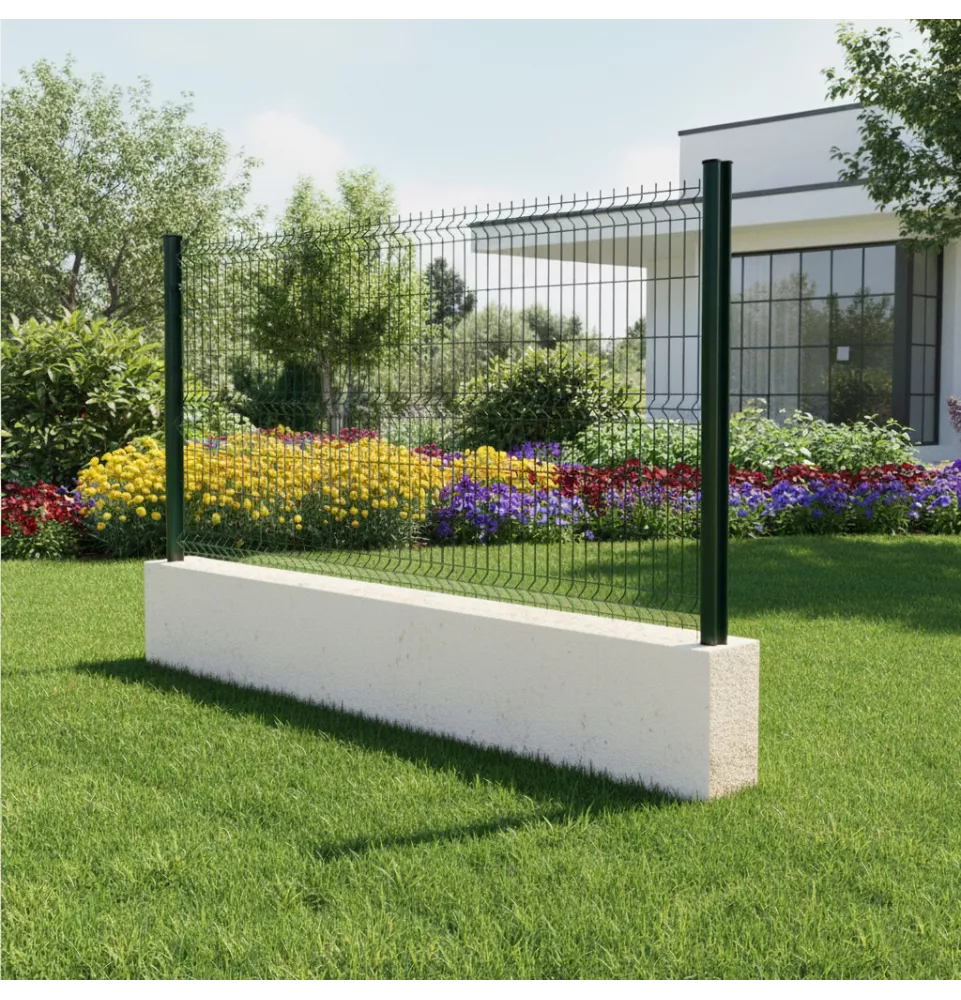

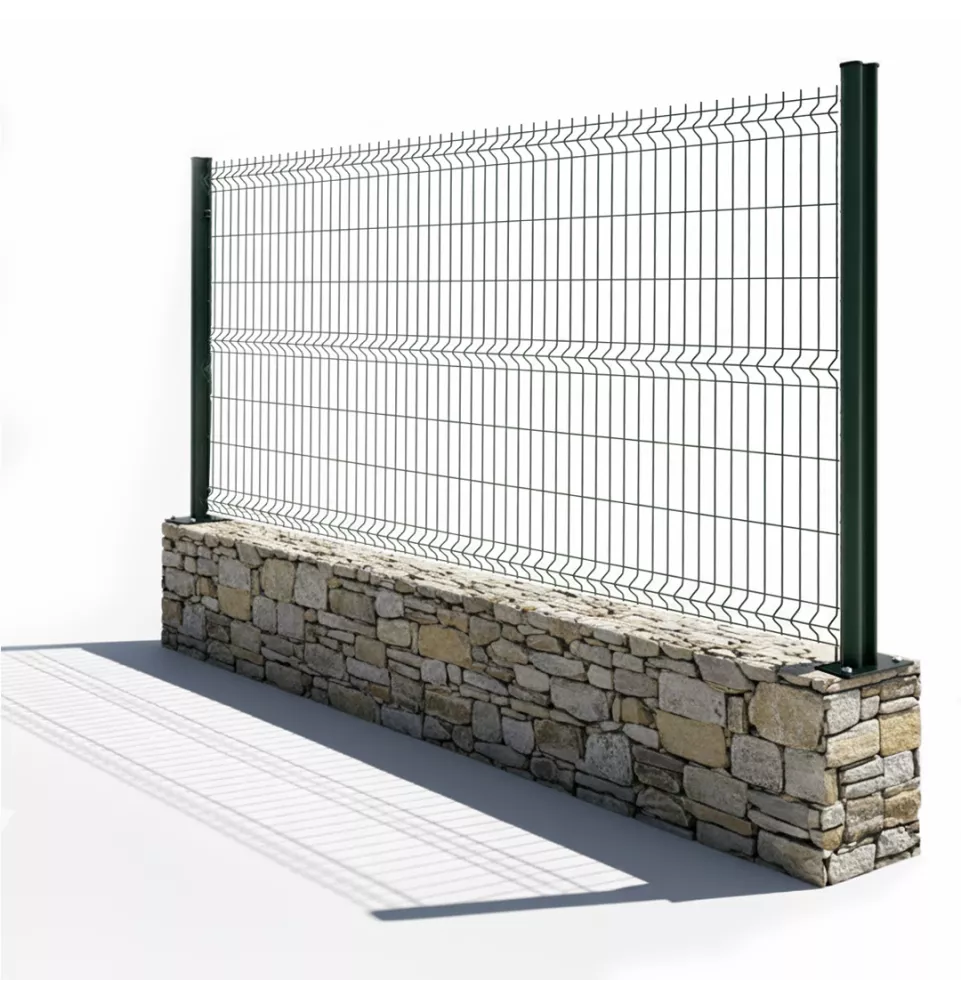

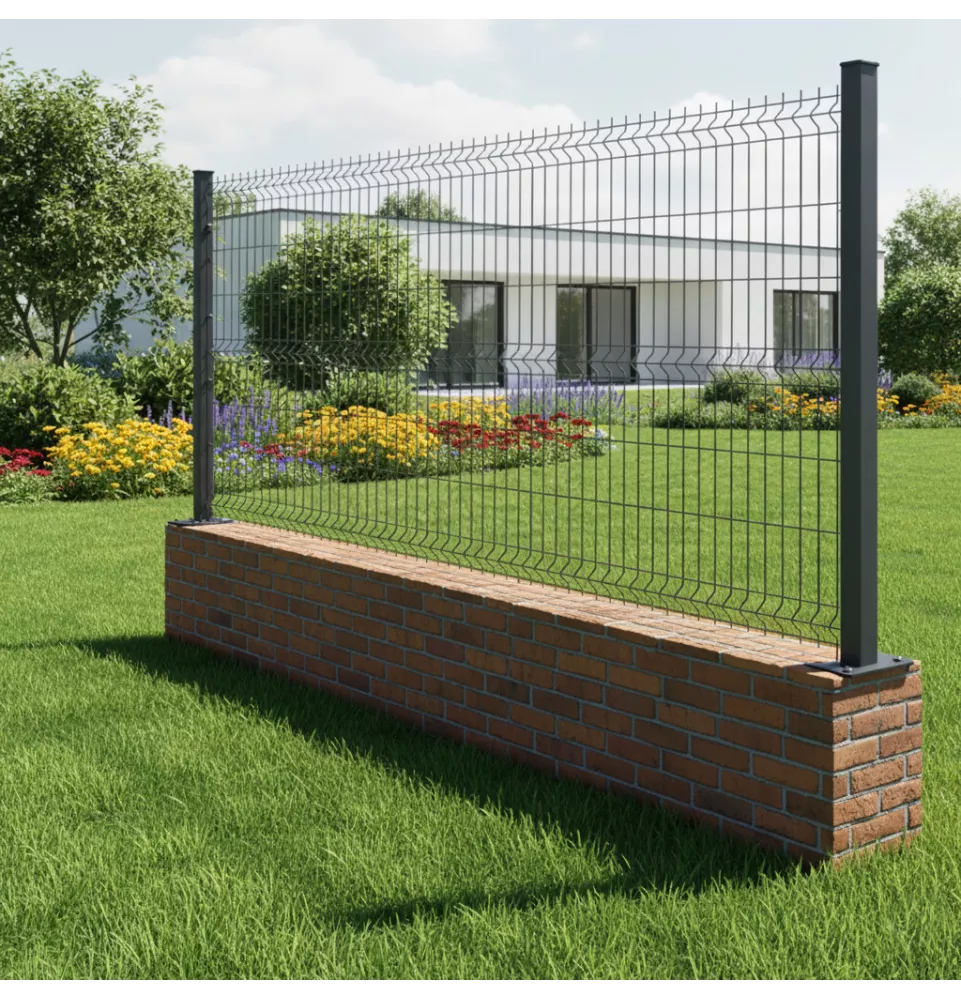

Pro Rigid Mesh Fence Kit on Base Plates (Ø 4/5mm)
This complete rigid mesh fence kit includes everything you need to install your own fence. All materials are delivered to your door, making it easy to set up a modern, attractive mesh fence.
Read more
Volumediscounts!
| Number of lm | +40 lm |
|---|---|
| % discount | 5% |
Rigid Wire Mesh Fence Panel
Tempo Welded Base Plate Post
Cap for Tempo Rigid Fence Post
Cheville 12/100
Range
Color
Height
Color
Height
Color
Color
Size
Lowest price on the web guaranteed
Found it cheaper elsewhere? We refund you the difference.
Made in
France & Europe
Flexible Payment Options
10-Year
Anti-Corrosion Warranty
Home delivery
or in-store pickup
x1
Rigid Wire Mesh Fence Panel
Pro (4/5 mm wire), Gray 7016, 3 ft 5 in
Our rigid mesh fence panels feature a support-free mounting system for quick and easy installation. The anti-corrosion coating ensures long-lasting durability and adapts to any outdoor setting.
Select your preferred color, panel height, and mesh type to suit your project.
x2
Tempo Welded Base Plate Post
Gray 7016, 3.5 ft
The rigid mesh fence post is essential for keeping your rigid panel fence stable and secure. Made in France and backed by a 10-year warranty, this post is built from durable materials for long-lasting performance.
End caps are sold separately.
Anchors are not included.
x2
Cap for Tempo Rigid Fence Post
Black RAL 9005
Black PVC cap designed for the Tempo post used with rigid mesh fencing. This cap seals the top of the post and provides a clean, finished look.
x4
Panel and Post Height Guide
| Panel Height | Post Height |
Finished Height |
||
| Surface Mount | Set in Concrete | With Base Panel | ||
| 0m63 | 0m67 | 0m87 | NC | NC |
| 0m83 | 0m87 | 1m07 | NC | NC |
| 1m03 | 1m07 | 1m27 | 1m77 | 1m28 |
| 1m23 | 1m27 | 1m57 | 1m97 | 1m48 |
| 1m53 | 1m57 | 1m97 | 2m17 | 1m78 |
| 1m73 | 1m77 | 2m17 | 2m47 | 1m98 |
| 1m93 | 1m97 | 2m47 | 2m87 | 2m18 |
Note: The posts included in our kits are designed for standard installations on level ground. If your site has a slope, you may need to use longer posts.
