Measuring guide
How to Measure for Your Fence Project
Before ordering your fence, it’s essential to get your measurements right. The measuring process is the same whether you’re installing posts on base plates or setting them in concrete.
Don’t worry if you’re new to this—just follow these straightforward steps.
1. Determine the Total Length
Example perimeter measurement: 20+10+20+10 = 60 m
Example for an L-shaped yard: add up the length of each side
2. Choose the Height
H: Measure your fence height based on the above-ground portion.
1
Your needs:
24"–48": good for marking property lines
60"–72": a solid choice for home security and privacy
80" and above: best for maximum privacy.
+8–12" for posts set on a wall
+12–20" for posts set directly in the ground
(depends on your soil type)
Check your local regulations for maximum fence height before making a decision.
2
Local regulations:
Most towns have zoning rules that may set a maximum fence height. In some neighborhoods, you may be limited to 72" or required to follow specific design guidelines (especially in subdivisions or historic districts). Always check with your local building department before ordering to avoid surprises.
3. Decide If You Need a Base (Sill)
The base (a small concrete wall or slab) can help:
- • Prevent grass from growing under the fence
- • Hold back soil if your yard isn’t level (up to 30% of the base height)
- • Add strength to your installation
- • Keep animals from entering your yard
- • Enhance the overall look
If your yard is flat and even, a base is optional.
There are two main types of bases: concrete or powder-coated steel.
4. Decide If You Need a Base Plate
A base plate lets you anchor your posts to a concrete surface. On a wall or concrete slab, it secures both your post and your fence panel.
Note: If you plan to add privacy slats to a rigid fence, it’s better to set posts in concrete. Using a base plate is not recommended in this case, as the added weight and wind load can damage your fence.
5. Account for Sloped Ground
Stepped installation (by sections): Each section is installed level, but each is set higher or lower than the previous one to follow the slope.
To plan this, measure the length of each level section (horizontal segment).
You can install a base for each section, either by burying or cutting it to fit.
Alternatively, cut your panels to size or use chain link, which is easier to adapt to slopes.
If you’re unsure, contact our customer service at 0422531034.
6. Calculate the Number of Posts Needed
The number of posts depends on your total length and fence type. Each fence panel is installed between two posts.
Each panel is 2.5 meters long.
Example: For a 25-meter fence using 2.5-meter panels: 25 ÷ 2.5 = 10 panels
You’ll need 11 posts (1 starter post + 1 post between each panel)
Our posts are designed to handle corners, so you don’t need extra posts for angles! However, if you’re adding a base, double the number of posts.
Each rigid mesh panel is 2.5 meters long.
For custom layouts or specific lengths—such as 6 meters or along a curve—you can trim a panel to fit. Rigid mesh panels can be cut with an appropriate tool (angle grinder or bolt cutter) for a perfect fit.
Summary:
Measure the total perimeter.
Choose your height (based on your needs and local codes).
Decide if you need a base or a base plate.
Check if your ground is sloped or flat.
Count your corners to plan for the right number of posts.
With these details, you’ll have everything you need to select the best fence for your property.
A question about this product?

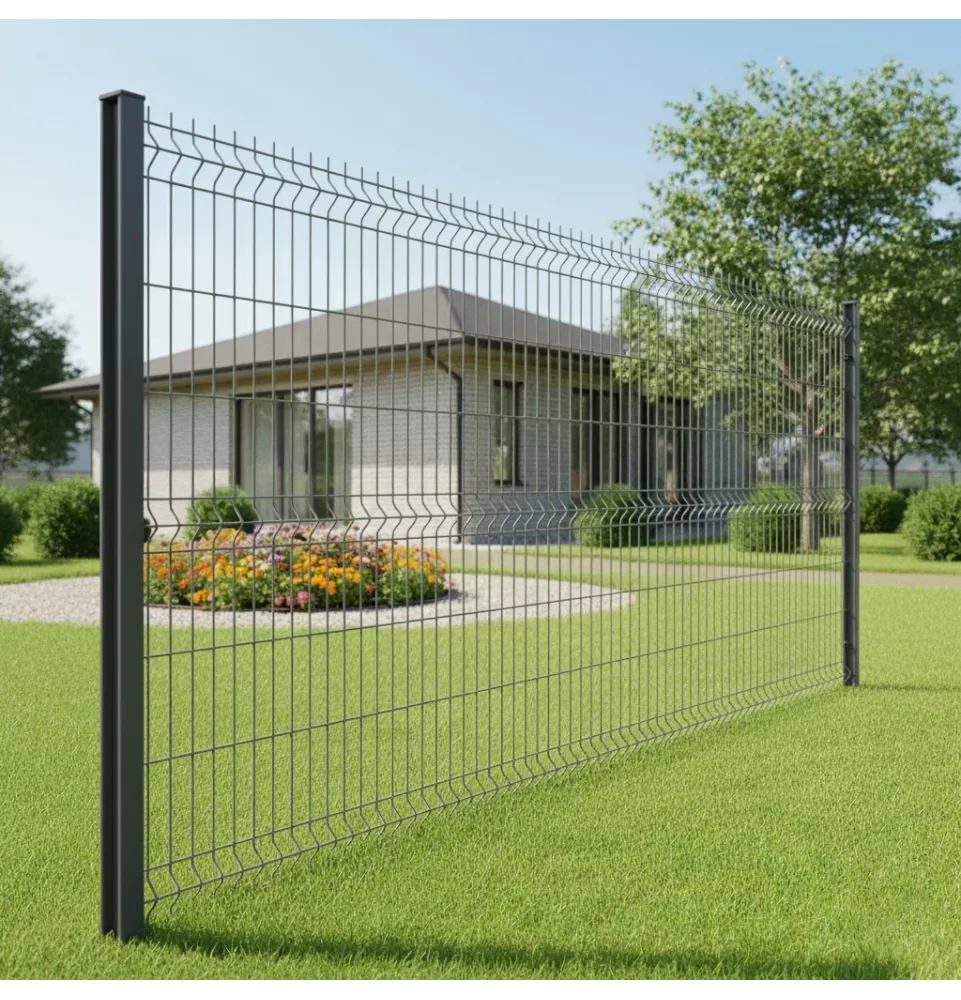

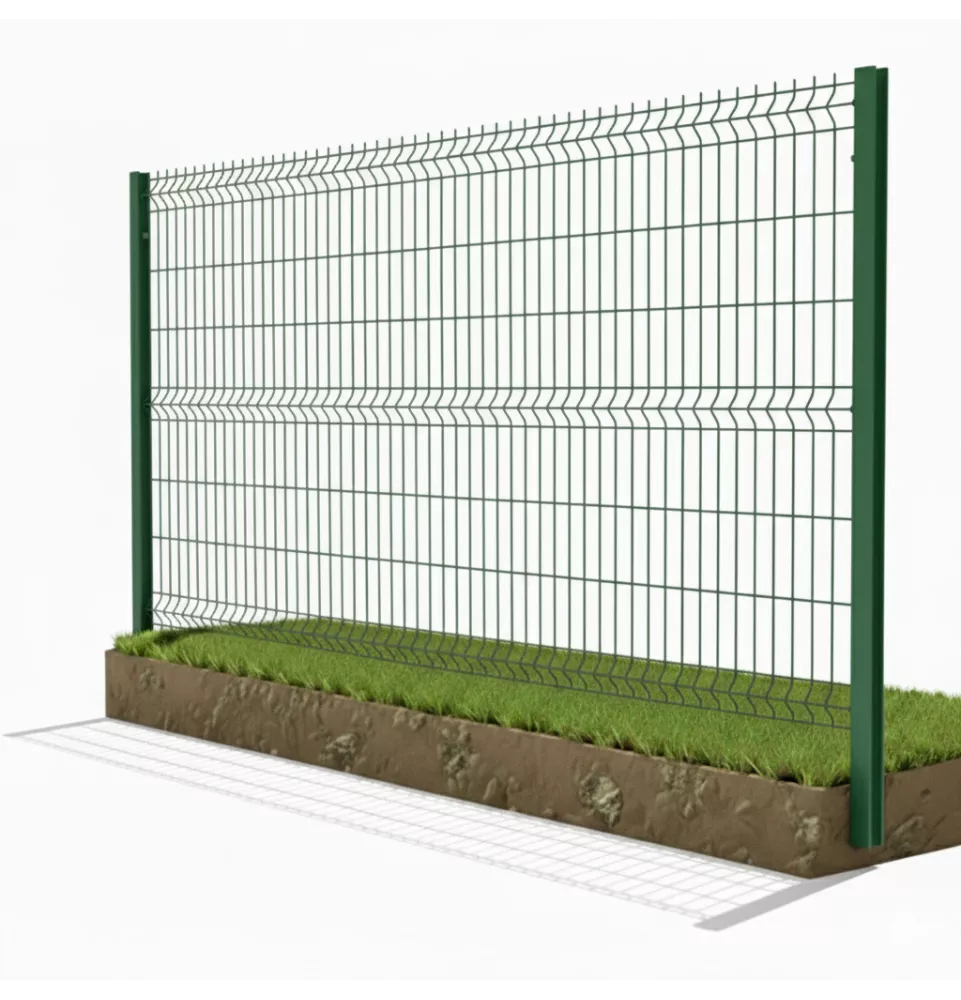

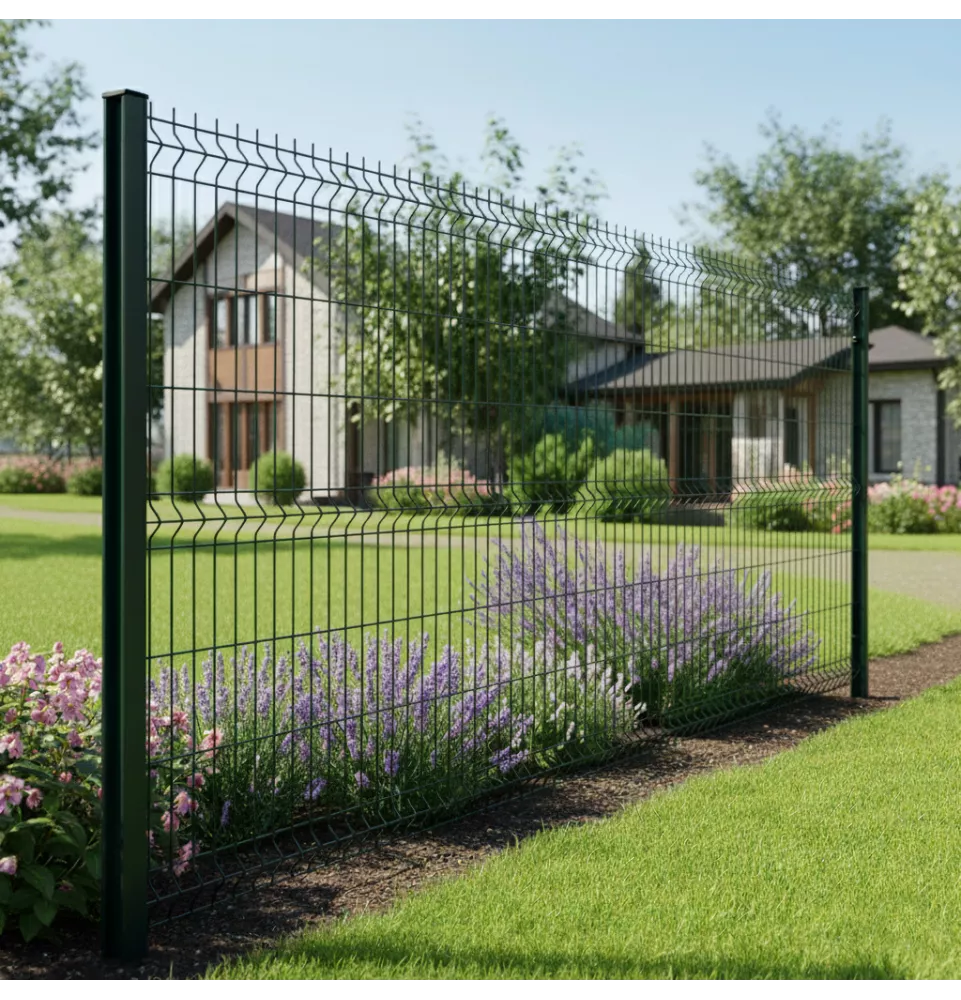

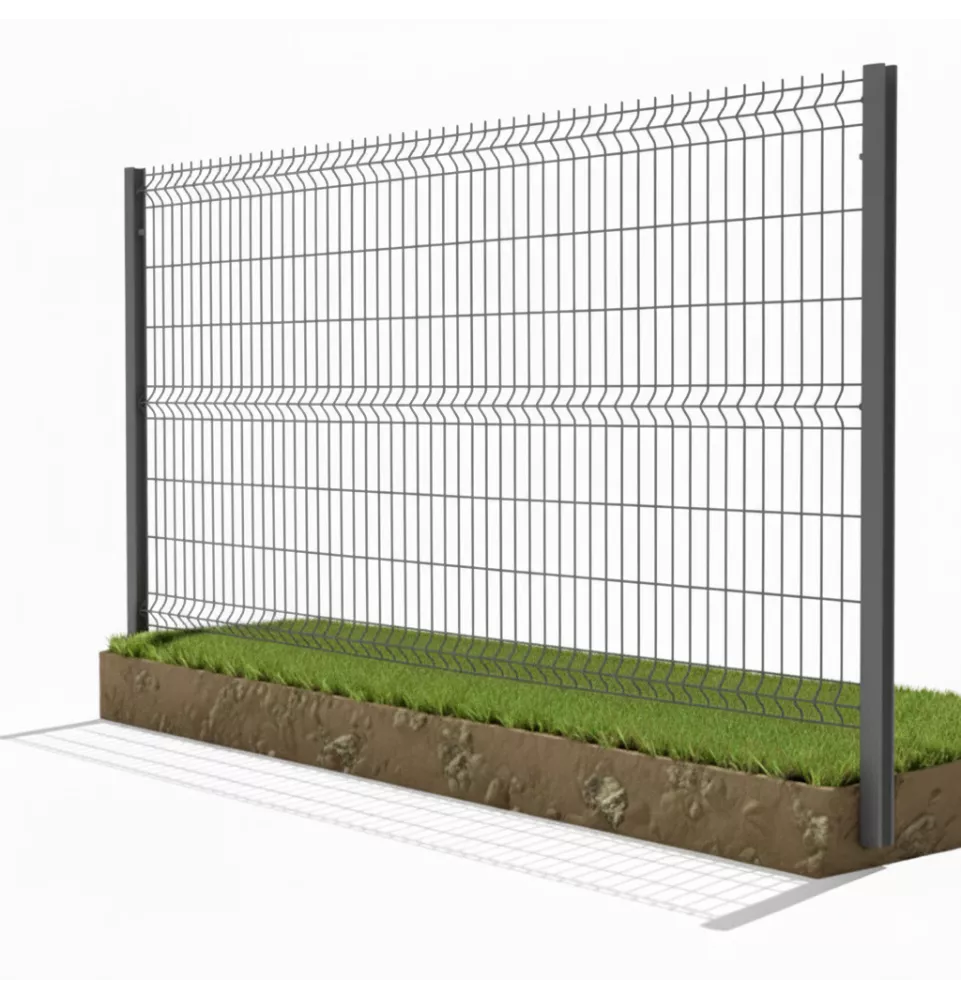

Pro Rigid Mesh Fence Kit for Setting in Concrete (Ø 4/5mm)
This complete rigid mesh fence kit includes everything you need for a straightforward DIY installation. You'll receive all the components required to set up a modern, attractive wire mesh fence at home.
Read more
Volumediscounts!
| Number of lm | +40 lm |
|---|---|
| % discount | 5% |
Rigid Wire Mesh Fence Panel
Tempo Post for Rigid Mesh Fence
Mounting Shim
Cap for Tempo Rigid Fence Post
Range
Color
Height
Color
Height
Color
Color
Lowest price on the web guaranteed
Found it cheaper elsewhere? We refund you the difference.
Made in
France & Europe
Flexible Payment Options
10-Year
Anti-Corrosion Warranty
Home delivery
or in-store pickup
x1

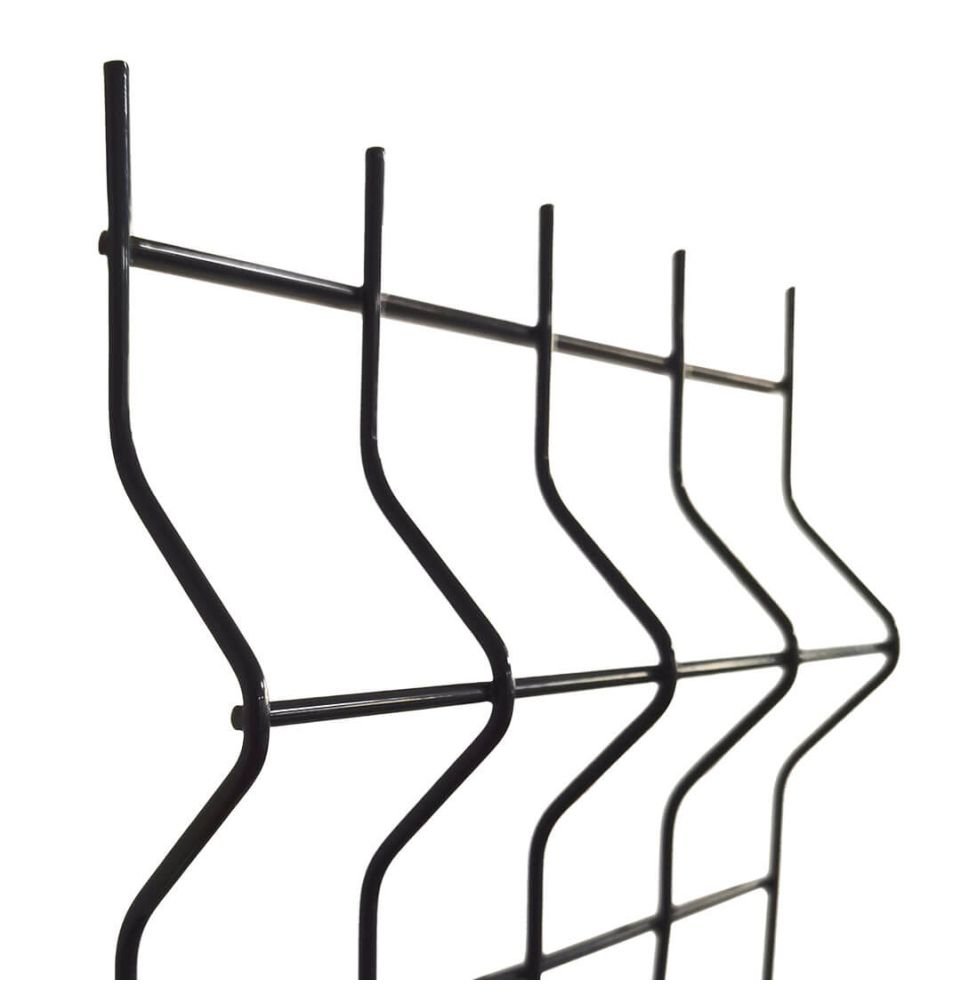

Rigid Wire Mesh Fence Panel
Pro (4/5 mm wire), Gray 7016, 3 ft 5 in
Our rigid mesh fence panels feature a support-free mounting system for quick and easy installation. The anti-corrosion coating ensures long-lasting durability and adapts to any outdoor setting.
Select your preferred color, panel height, and mesh type to suit your project.
x2
Tempo Post for Rigid Mesh Fence
Gray 7016, 1 ft 3 in 7/16
The central element of your fence, the rigid mesh fence post is designed to securely hold your rigid fence panels in place. Made in France and backed by a 10-year warranty, this post is built from durable materials for long-lasting performance.
End caps are sold separately.
x2
x2
Cap for Tempo Rigid Fence Post
Black RAL 9005
Black PVC cap designed for the Tempo post used with rigid mesh fencing. This cap seals the top of the post and provides a clean, finished look.
Panel and Post Height Reference
| Panel Height | Post Height |
Finished Height |
||
| Surface Mount | Set in Concrete | With Base Panel | ||
| 0m63 | 0m67 | 0m87 | NC | NC |
| 0m83 | 0m87 | 1m07 | NC | NC |
| 1m03 | 1m07 | 1m27 | 1m77 | 1m28 |
| 1m23 | 1m27 | 1m57 | 1m97 | 1m48 |
| 1m53 | 1m57 | 1m97 | 2m17 | 1m78 |
| 1m73 | 1m77 | 2m17 | 2m47 | 1m98 |
| 1m93 | 1m97 | 2m47 | 2m87 | 2m18 |
Note: The posts included in our kits are designed for standard installation on level ground. If your site has a slope, you may need longer posts.
Images are 3D renderings
kit-grillage-rigide-sceller-pro
0
Items
Data sheet
- Application
- Residential & Commercial
- Installation type
- To be anchored
- Origin
- Europe
- Warranty
- 10 years
