CARDIN Adjustable Reflex Photoelectric Sensors, 8m Range

A question about this product?

CARDIN Adjustable Reflex Photoelectric Sensors, 8m Range

REF CDRREFLEX

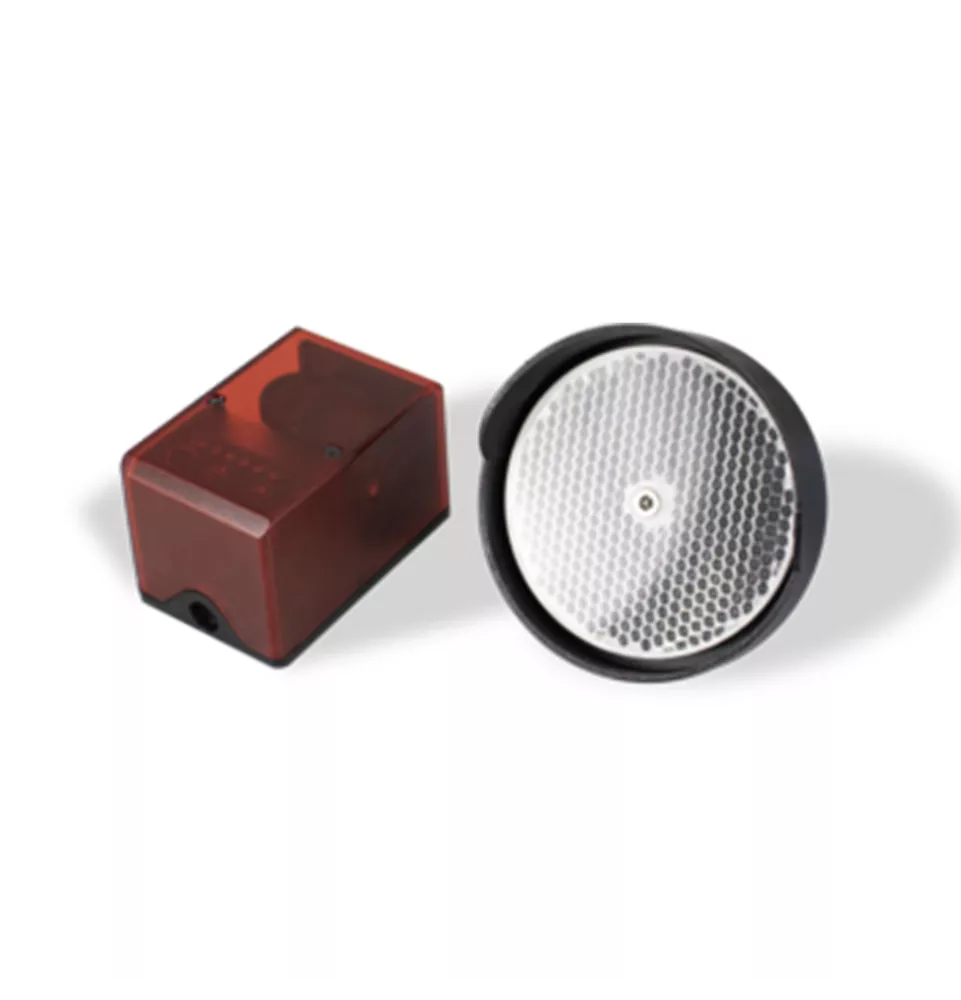

Compact adjustable reflective photocell with IP55 protection rating and an 8-meter range. More space-saving than separate transmitter/receiver pairs, as both functions are integrated into a single housing. Ideal for installations where wiring between gate posts isn't possible, such as in older homes.

Model: CARDIN
PROJET EN FÊTE -75€ tous les 500€ d'achat
€105.12
Tax included
- 40%
€175.20

Delivery icon
Home delivery free from 999 € incl. tax Within 10 days.
Delivery icon
In-store stock 20 in stock nationwide

Guaranteed cheapest product on the web

Found it cheaper elsewhere? We'll refund the difference.

These compact, adjustable reflective photocells are designed to enhance the safety of your gate or outdoor access points. Featuring an IP55 protection rating, they provide reliable resistance to dust and water jets, ensuring consistent performance with a range of 8 to 10 meters. Unlike traditional photocell sets that require separate transmitter and receiver units, this model combines both functions in one enclosure, making it significantly more compact. This setup is especially useful for retrofitting gates on older properties or renovations where running cables between posts isn't feasible. The system operates using a passive reflector mirror placed opposite the unit, which greatly simplifies wiring and installation.

Additional Information

Power supply: 12-24 V (DC)
Operating temperature: -20°C to 55°C
Range: 8 m
Dimensions: 50x90x60 cm

How to Adjust and Align CARDIN Reflex Photocells

The CARDIN CDR REFLEX model features an adjustable optical head with a ±10° horizontal and vertical range from its standard position. This flexibility helps compensate for installation challenges, such as when the reflector mirror is mounted at a different height or slightly offset from the unit.

For precise alignment, make small incremental adjustments while monitoring the built-in signal strength LED indicator. The stronger the detected signal, the clearer the LED feedback—use this as your main guide for optical centering.

Once you achieve optimal alignment, test the system by briefly blocking the beam; the photocell should respond immediately. Ensure the 12-24 V DC power supply remains stable throughout the adjustment process for accurate readings.

CDRREFLEX
