Portail alu coulissant sur mesure Grenoble
Portail alu coulissant sur mesure Grenoble

Measuring guide

Tips and Key Steps for Installing Your Gate Outdoors

Looking to install a gate to secure your property and enhance your outdoor space? Before you buy, it’s crucial to take accurate measurements. This guide walks you through how to measure for your gate, choose the right style (swing or sliding), and avoid common mistakes.

1. Measuring the Width Between Posts

photo example measuring width between posts

Measure the inside distance between your two gate posts at three different heights:

A
Top
B
Middle
C
Bottom

Why three measurements? Posts aren’t always perfectly parallel—especially on older installations or if they’ve shifted over time.

Record the smallest of the three measurements—this is your usable gate width.
If the difference between measurements is more than 1/2 inch, check the alignment of your posts before installing. For example: If you measure 119.3" at the top, 118.5" in the middle, and 118.9" at the bottom, use 118.5" as your width.

2. Measuring the Height from Ground to Underside of Post Cap

Next, measure the total available height from the finished ground up to the bottom of the post cap (or cover).

  • • Measure on both sides, as the ground may slope slightly.
  • • The final gate height should be 2" to 4" less than the available height to allow clearance for hinges and opening.

Make sure the rack and gate opener can be installed without interfering with the gate height.

photo example measuring height from ground to underside of post cap

3. Special Case: If You Don’t Have Posts Yet

If you’re building your entryway from scratch:

  • • Plan for a total gap = gate opening + 3" to 4" (for hinges and hardware),
  • • Position your posts based on the gate’s swing direction (inward or outward),

4. Check That the Ground Is Level

The ground should be flat and level across the full width of the gate.
If there’s a slope:

  • • You can open the gate outward (if allowed by local regulations),
  • • Or choose a custom gate with adjustable hinges or an asymmetrical swing (one leaf narrower than the other).

Pro tip:
Use a spirit level or laser level to check for any height differences.
A slope of more than 3/4" per 3 feet can cause issues with gate operation.

In Summary:

Carefully measure the width between your posts at three heights (top, middle, bottom).
Note the available height from the ground to the post cap, allowing a 2" to 4" gap.
Check that the ground is level and posts are plumb before installing.
Consider gate automation when measuring to avoid surprises during installation.
Choose a swing gate for wide, straight entries, or a sliding gate for tight spaces or sloped ground.

If you’re unsure, consult a professional for on-site measuring—this ensures a perfect fit.

A question about this product?

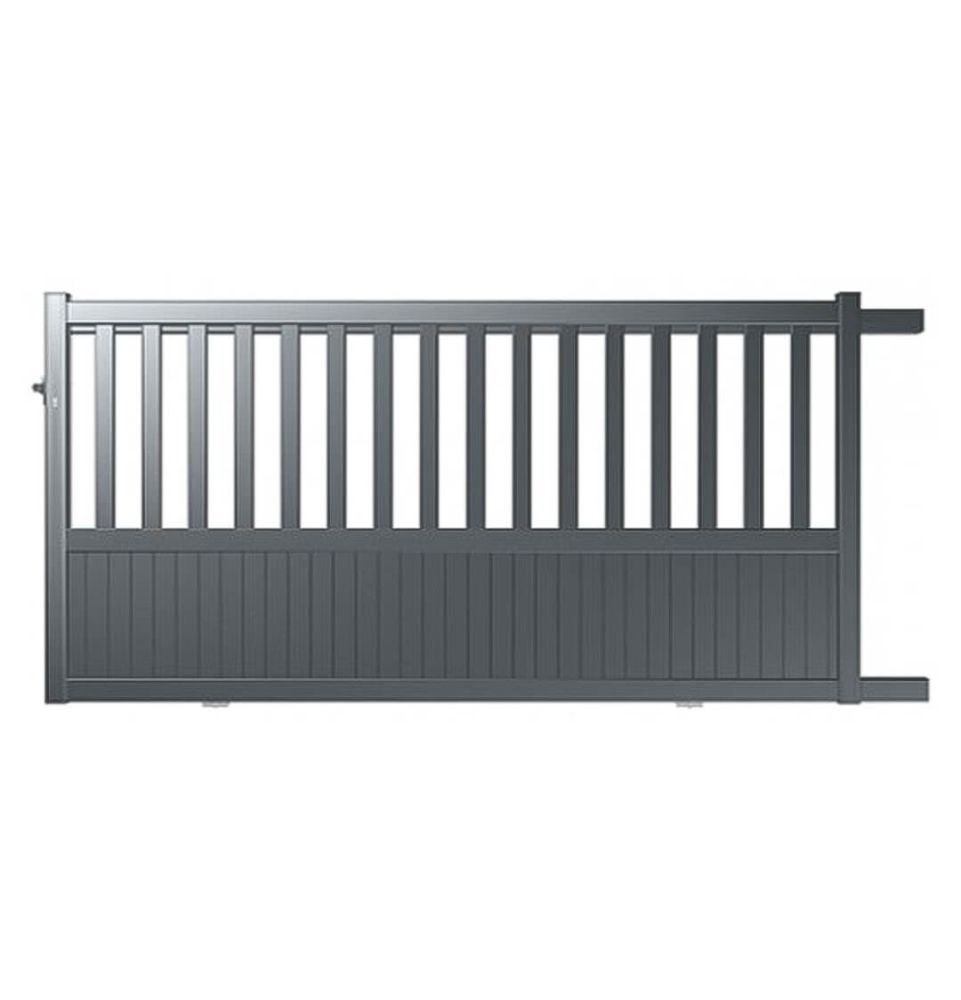

Custom Aluminum Sliding Gate Grenoble

REF PORTCOULGRENXXX

Selecting the right sliding gate is essential for your property. If you already have gate posts or your entrance isn't a standard size, the Grenoble custom sliding gate is designed for you. Modern and stylish, it adds real value to your outdoor space. Choose the exact height and width you need, down to the millimeter.

PROJET EN FÊTE -75€ tous les 500€ d'achat
€1,965.60
Tax included

Pay in installments by credit card with no fees Simulate .

A loan commits you and must be repaid. Check your repayment capacity before committing.

Delivery icon
Home delivery free from 999 € incl. tax Within 3 to 4 weeks.

Guaranteed cheapest product on the web

Found it cheaper elsewhere? We'll refund the difference.

Crafted from a durable, weather-resistant material, aluminum is a popular choice for entryways. The aluminum sliding gate complements any landscape and suits a variety of outdoor designs. To enhance privacy and secure your property, select the height you need with precision. Measure the exact width between your posts to ensure a perfect fit, and pair your new gate with your existing aluminum fence. This way, you get a fully customized gate tailored to your space.

This kit includes

x1
Latch receiver box
x2
Roller
x1
Stopper
x1
Post support
x1
Galvanized steel track
x1
Fastener set

Benefits of a custom sliding gate

  • Design tailored to your outdoor décor
  • Dimensions made to measure
  • Strong and secure thanks to aluminum construction

Installing your custom gate

You can install your custom aluminum sliding gate yourself. Step-by-step instructions are provided to guide you through the process. For best results, consider hiring a professional installer or consult our in-store and phone experts for advice.

How to measure for your custom gate

schema_portail_sur_mesure

The gate height should be 90mm less than the height under your capstone.

Image generated in 3D

PORTCOULGRENXXX

Data sheet

Bar Spacing
70x16
Post
80x50
Opening Direction
80x40
Origin
France
Warranty
10 ans (structure) et 25 ans (laquage)
How much does a custom aluminum gate cost? +

The price of a custom aluminum gate depends on the size, model, and any options you select. At Cloture-discount.fr, our custom gates are competitively priced. For a personalized quote tailored to your project, please contact our team at 04 22 53 10 34.

What are the drawbacks of an aluminum gate? +

Aluminum swing gates have a few limitations: they may bend if subjected to strong impacts or high winds, and their price is generally higher than options like PVC. Sliding models also require enough space on the side for opening and a more complex installation with a guide rail.

How do I maintain a sliding aluminum gate? +

Maintaining a sliding aluminum gate is straightforward, thanks to the durability of this robust material. Simply clean the surface regularly with soapy water and a non-abrasive sponge to keep it looking its best. Unlike wood or steel gates, aluminum doesn't require any rust or corrosion treatment. To ensure smooth operation, check the guide rail periodically and lubricate the rollers if needed. With its weather resistance and powder-coated finish, your Districlos gate will stay in great condition for years with minimal upkeep.

Why choose a sliding gate instead of a swing gate? +

A sliding gate is a great choice if you want to save space, as it doesn’t swing open onto your property. It’s especially practical for sloped driveways or entrances that open directly onto the street, letting you park close to the gate without blocking its movement. Sliding gate motors are generally easier to install and tend to be more reliable over time compared to swing gate motors, making daily use more convenient.

What range of custom aluminum sliding gates do you offer? +

Our custom aluminum sliding gate range includes a wide selection of models to suit various needs. Explore our gates online in different styles: semi-open, solid, or louvered, available in multiple heights and widths. Each gate is made from durable materials and crafted with attention to quality. Our technical advisors are here to help you choose the right gate for your entrance layout. View all our gate models on our website or contact us at 04 22 53 10 34 for expert advice.

Do you offer installation for your custom sliding gates? +

We recommend hiring a professional installer to ensure your custom sliding gate is fitted correctly. Our technical advisors can connect you with qualified professionals from our network or guide you by phone during installation. For personalized advice based on your entryway, contact our in-store experts at 04 22 53 10 34.
