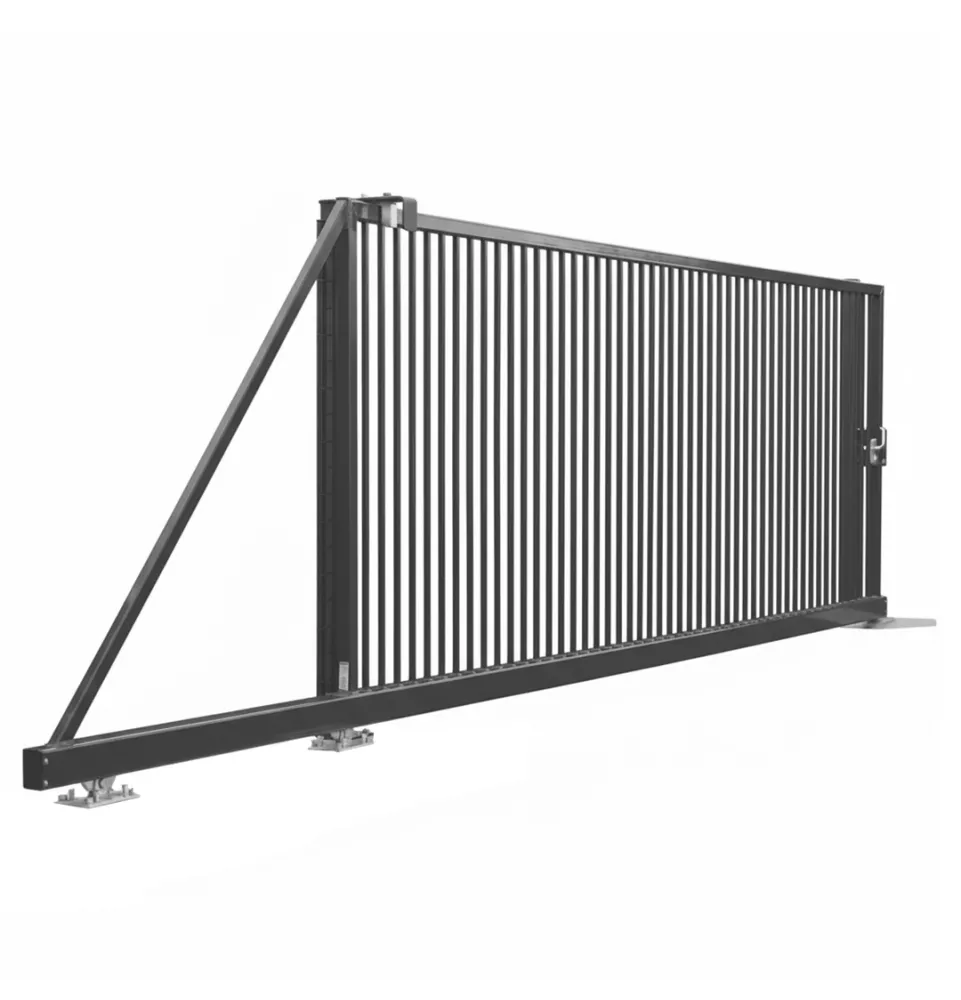

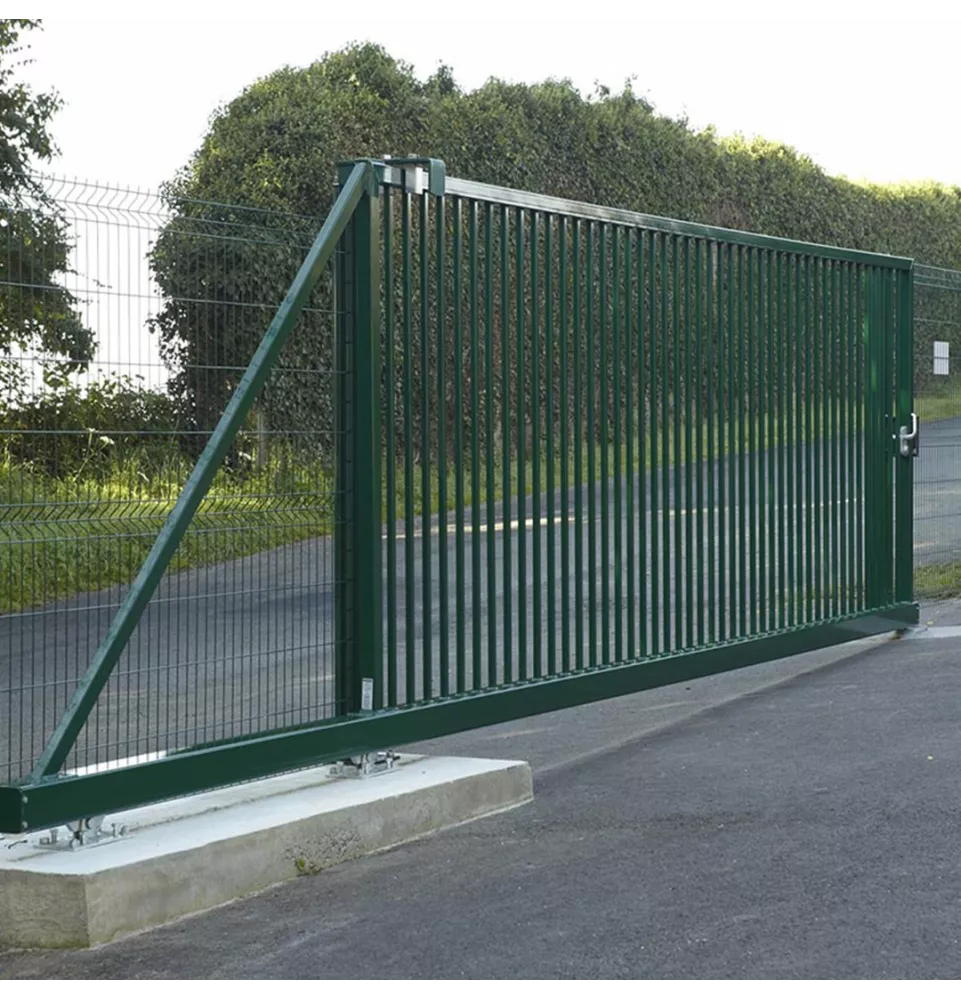

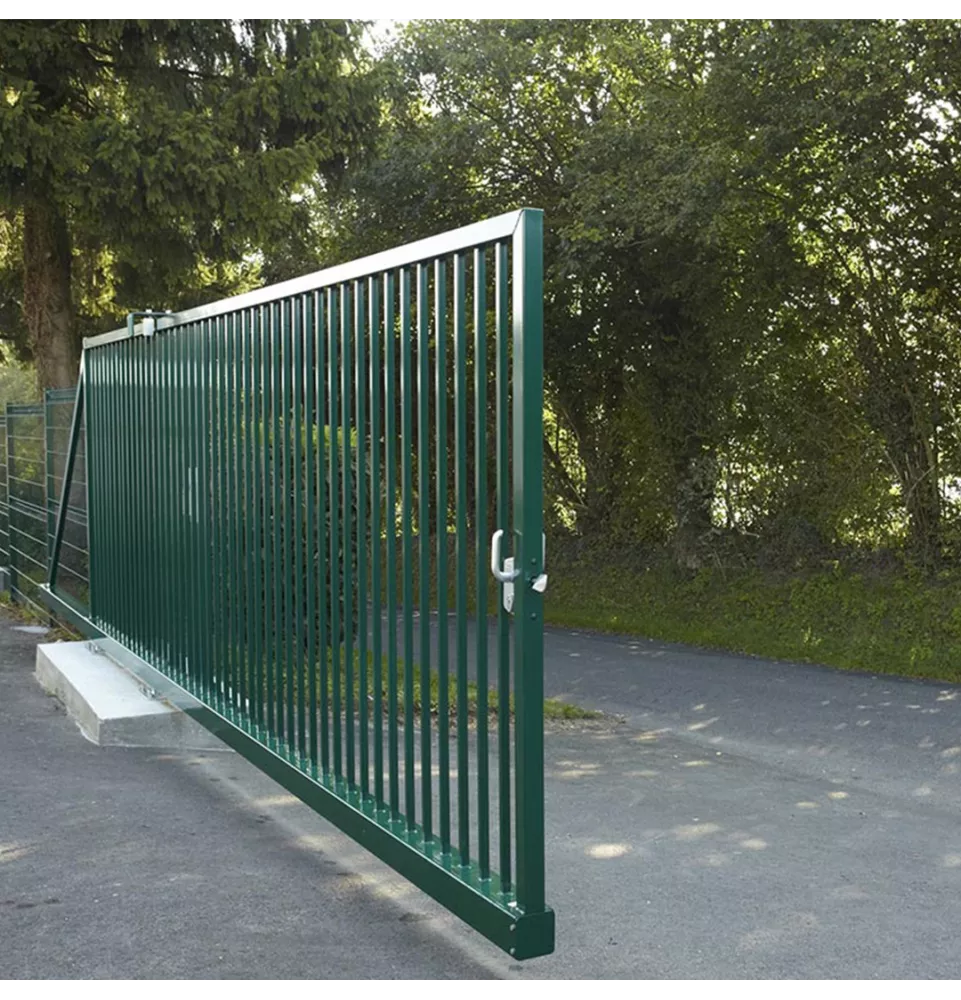

Mezzo Cantilever Gate

Key Benefits of the MEZZO Cantilevered Barred Gate

• No ground track—prevents vehicle jolts and gravel buildup on industrial sites.
• Clear opening—enables smooth movement for trucks and heavy vehicles without obstacles.
• Adaptable installation—works on sloped or uneven ground without special leveling.
• Maximum visibility—barred infill supports effective perimeter surveillance and access control.
• EN 13241 compliance—meets European safety standards for demanding industrial sites.
• Compatible with automation—reduced wind resistance and easy motorization for medium-traffic use.
• Durable construction—high-performance powder coating resists corrosion in industrial environments.

Manual and Motorized Versions Available

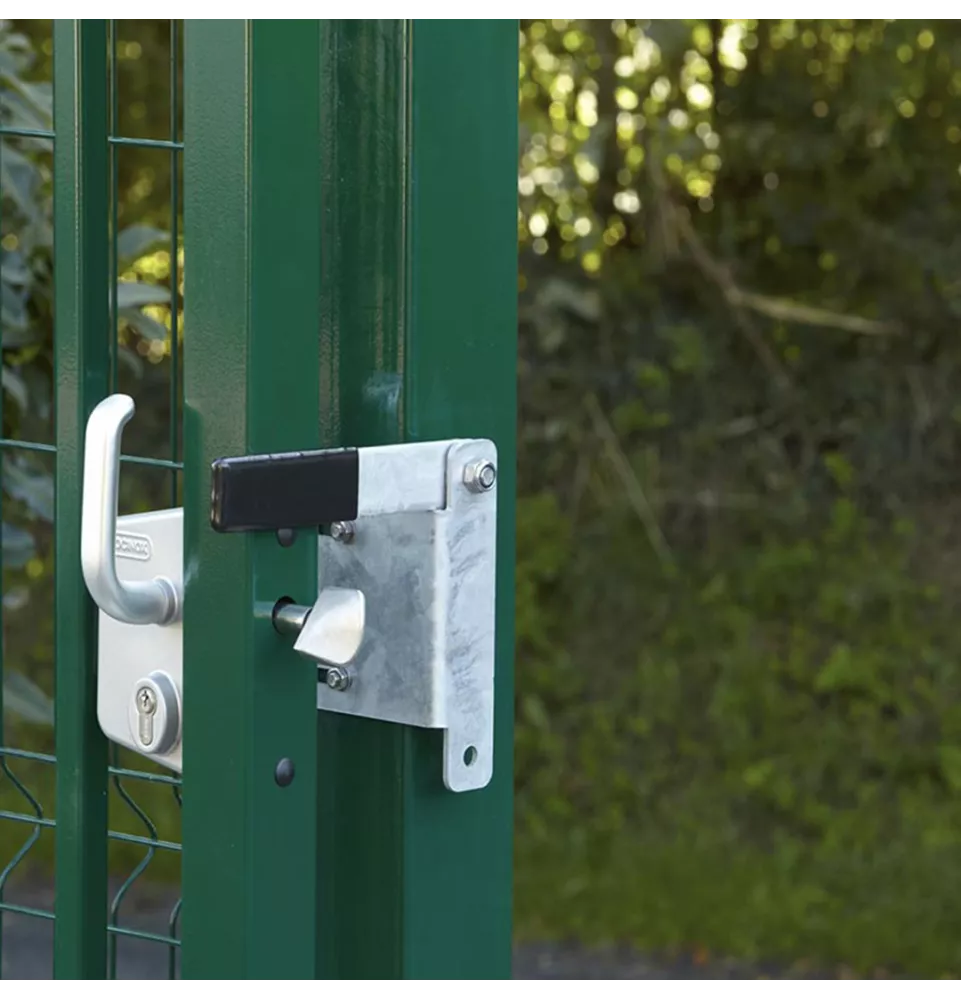

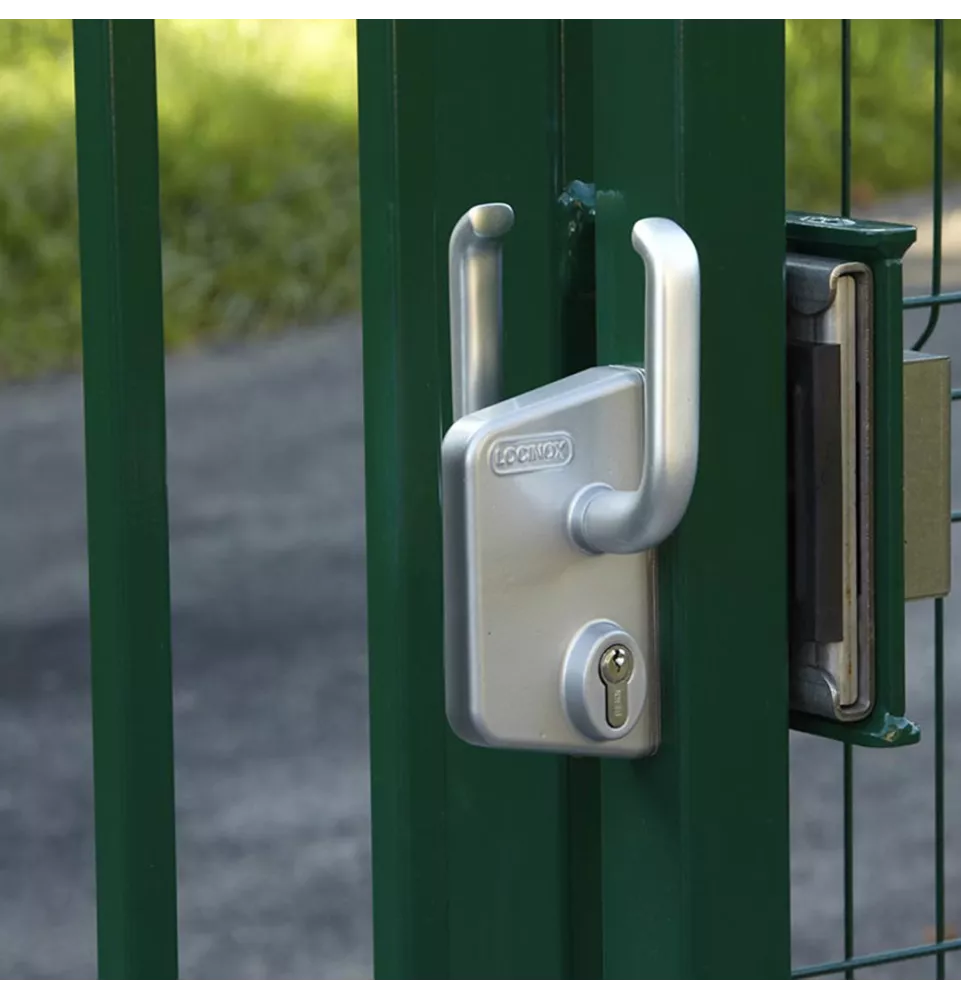

- The manual version features a standard European cylinder lock, suitable for sites with moderate traffic. This is a reliable solution for businesses that do not require electrical connections.

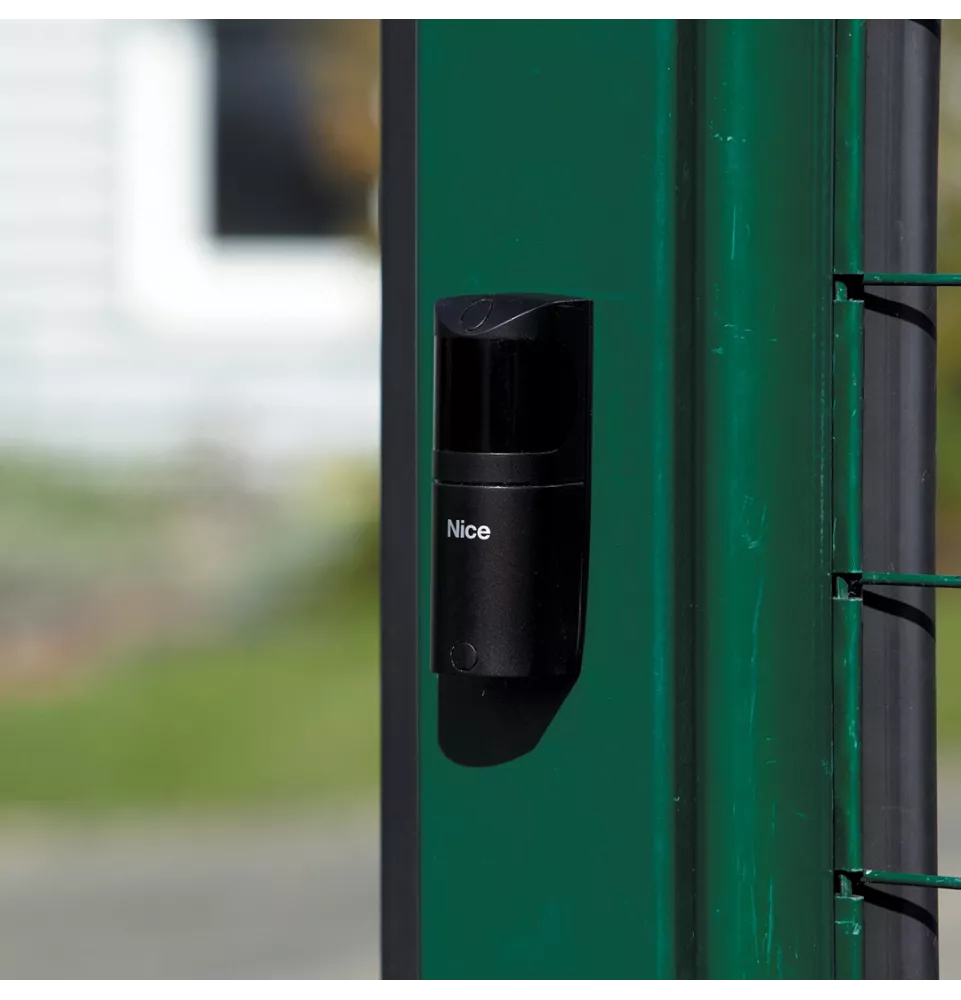

- The motorized version is fully pre-wired and tested at the factory. It includes safety sensors, sensitive edges, LED flashing lights, and low-consumption area lighting. The ESPACE automation system supports up to 60 cycles per day, powered by 230V single-phase supply and a 38 Vdc 170W motor.

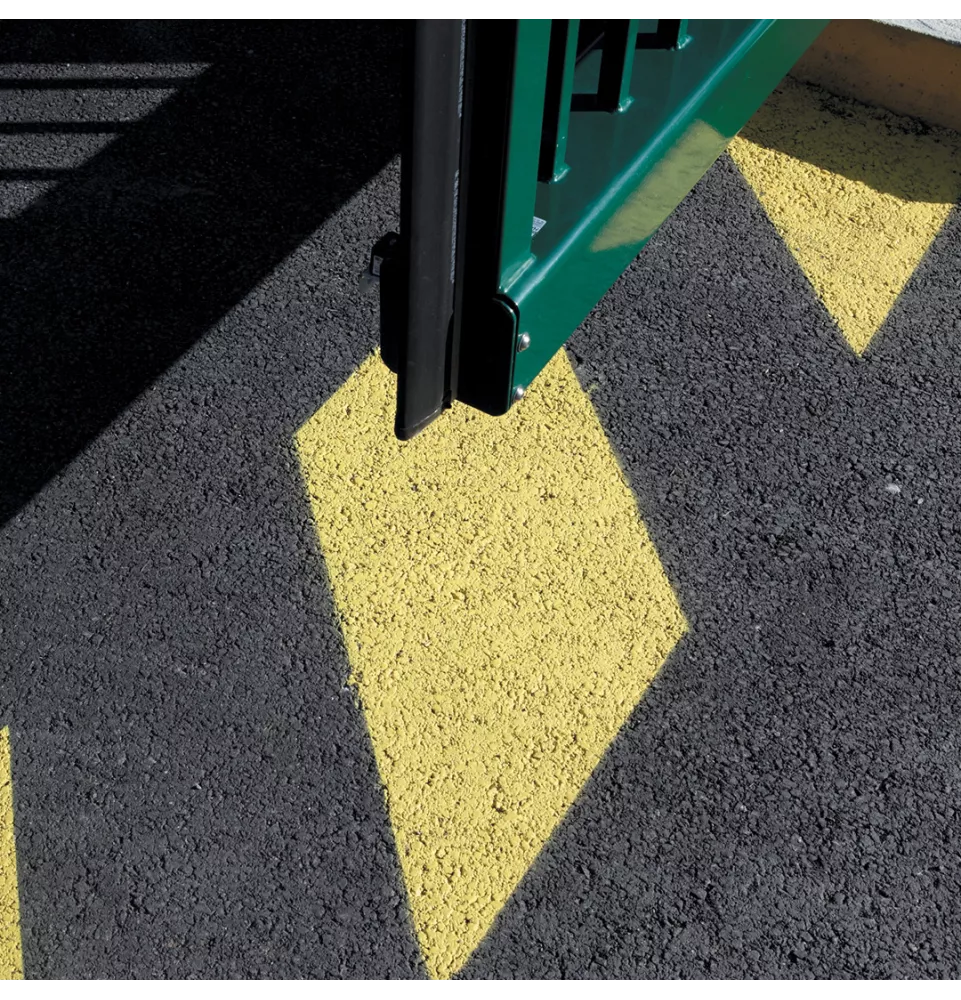

- Professional accessories include fence line connections, ground markings, and truck detection sensors. Every configuration meets EN 13241 standards and features a high-protection powder-coated finish, with the Protect+ option available for highly corrosive environments.

Professional Finishes and Colors

Choose from four standard RAL colors to match your company’s branding: Green 6005, Anthracite Gray 7016, Black 9005, and White 9010.
The standard finish combines zinc epoxy and polyester for long-lasting color and protection on exposed industrial sites.

Additional Information

• - Nominal heights available from 1.50 m to 2.00 m, with clear openings from 3.00 m to 6.00 m to suit your site’s requirements.
  - The supporting frame uses 60 x 60 mm profiles, with a main beam of 120 x 120 mm for optimal strength.
  - Square tube bars (25 x 25 mm) with a standard 110 mm spacing provide anti-intrusion security.

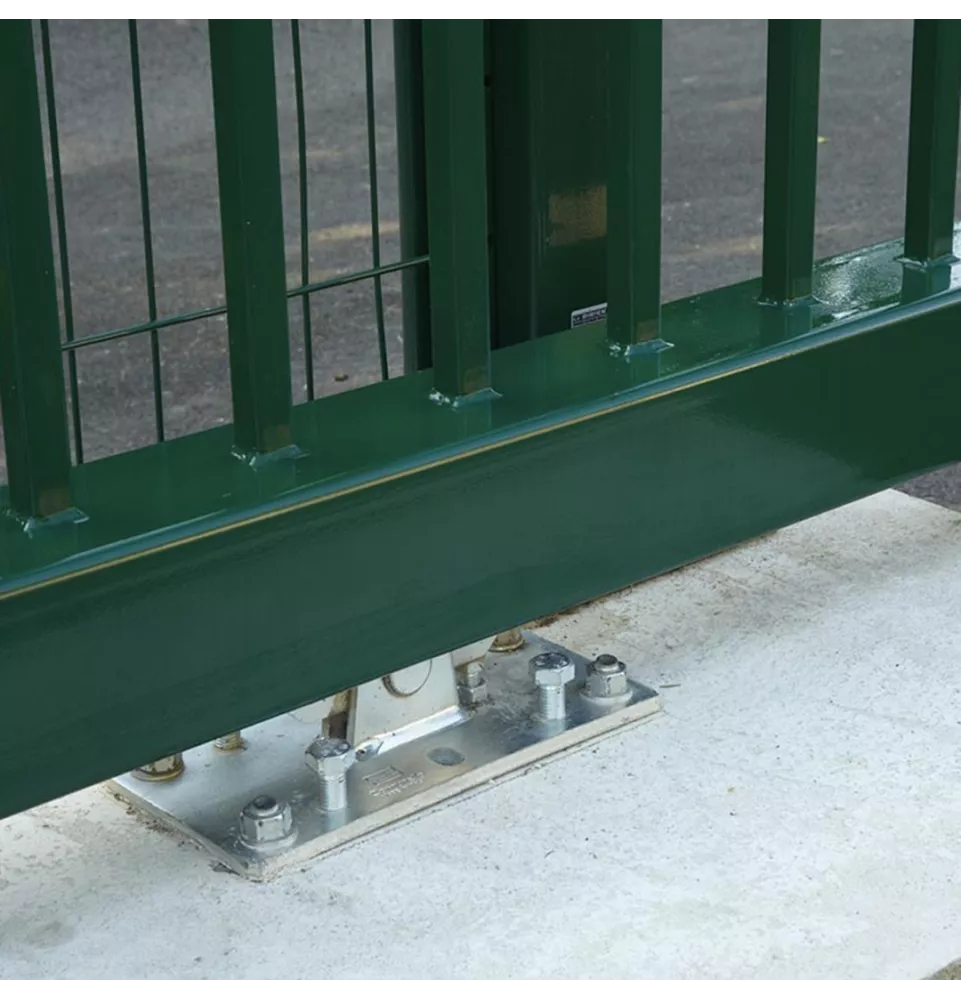

  - Guide and receiving posts are 100 x 100 mm, mounted on concrete plates for permanent anchoring.
  - Actual clear opening ranges from 2.74 m to 5.74 m depending on selected height, ensuring proper vehicle clearance.
  - Motorization uses a steel rack under the base rail and regulated speed of 10 m/min for intensive use.

How to Install a Cantilevered Gate

Begin by assessing the site, selecting the right dimensions and finish. Next, pour concrete foundations and anchor the posts according to the specified measurements. For motorized versions, install the drive unit and safety systems. Complete final adjustments and testing before commissioning. Manual operation is always possible if needed.
